Product Description

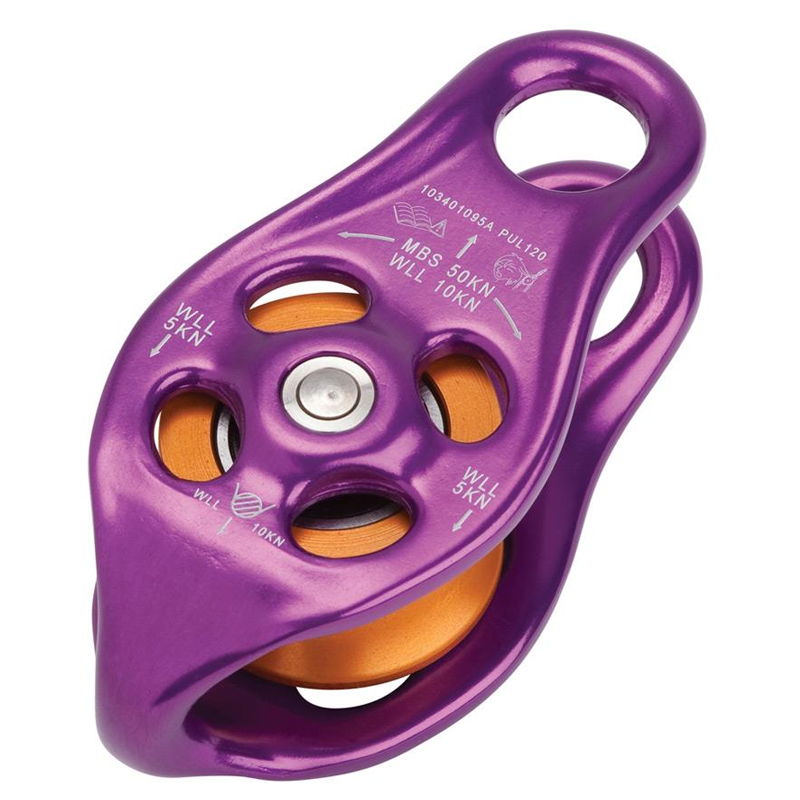

The Pinto Rig Pulley is a robust, high‑efficiency pulley designed for rigging, hauling and rescue work. Its smooth connection points and load‑bearing becket support a wide range of textile‑based configurations.
Key Features
- Suitable for ropes up to 16mm
- Spacer available to prevent cheek plate pinching during textile attachment
- Rounded edges and fairlead flares maintain high working efficiency
- Direct textile connection reduces system cost and increases lift height
- Compatible with DMM carabiners
Specifications
- Product Code: PUL120
- Colour: Purple
- MBS: 50kN
- WLL: 10kN
- Dimensions: 100 x 48 x 37mm
- Weight: 162g
- Rope Diameter: 16mm max
- Sheave Diameter: 6mm
- Efficiency: 95%
- Certification: EN12278:2007, NFPA 2500 (1983) 2022 ED (G)
