Product Description

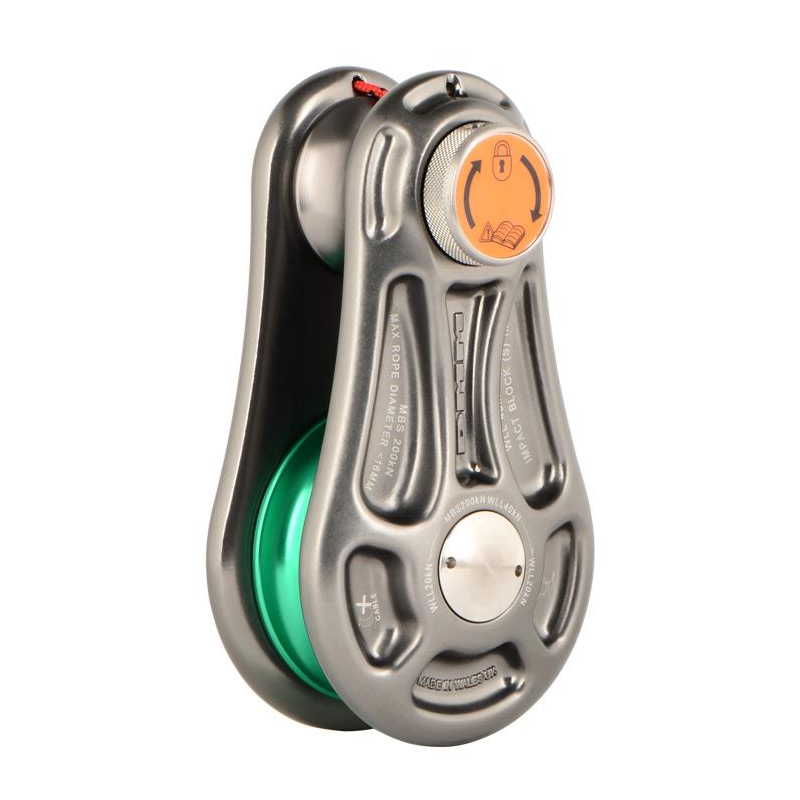

The Impact Block Small is a high‑performance rigging block designed for situations where loads may be dropped onto rigging with significant impact forces. Built from advanced materials and engineered for durability, it delivers exceptional strength, rope friendliness and long‑term reliability.
Key Features
- Designed to manage high impact forces in demanding rigging environments
- Rope‑friendly construction with smooth transitions and durable components
- Lightweight for easier handling without compromising strength
- Highly efficient sheave and bearing performance for everyday rigging and winch operations
Specifications
- Colour: Titanium/Green
- MBS: 200kN
- WLL: 40kN
- Dimensions: 180 × 100 × 70mm
- Weight: 1860g
- Maximum Rope Diameter: 16mm
- Certification: EN12278:2007
- Sheave colouring follows EU WLL protocol
- Conforms to NFPA 1983 (2012) Class G
|
Product Name
|
Product Code
|
Colour
|
MBS
|
WLL
|
Dimensions
|
Weight
|
Max Rope Diameter
|
Conformance
|
|
Impact Block Small
|
IMB-S
|
Titanium/Green
|
200kN
|
40kN
|
180 x 100 x 70mm
|
1.86kg
|
16mm
|
NFPA 1983 (2012ED) G, EN 12278:2007
|
