Product Description

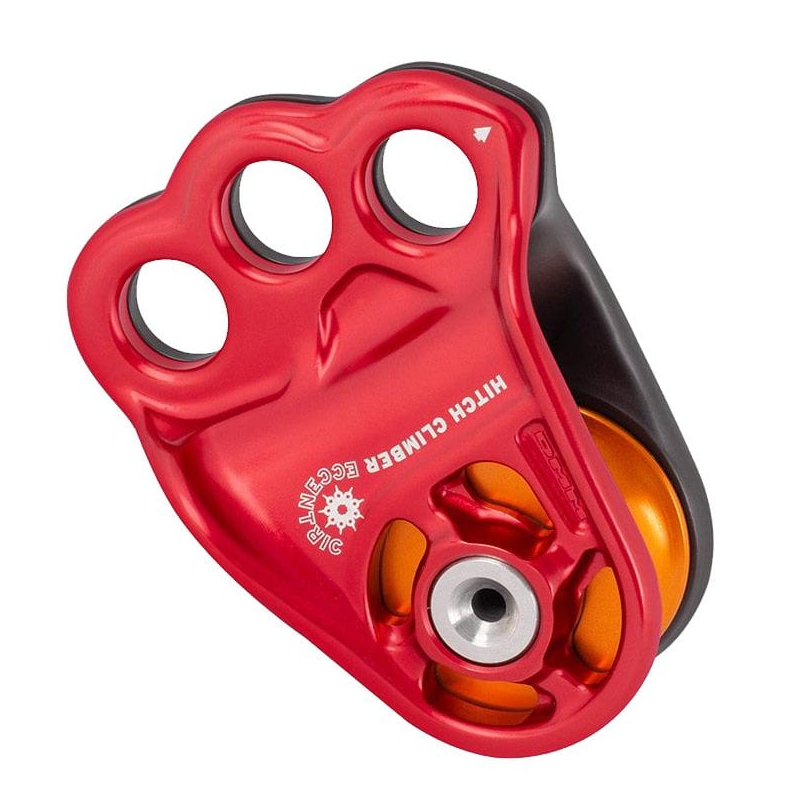

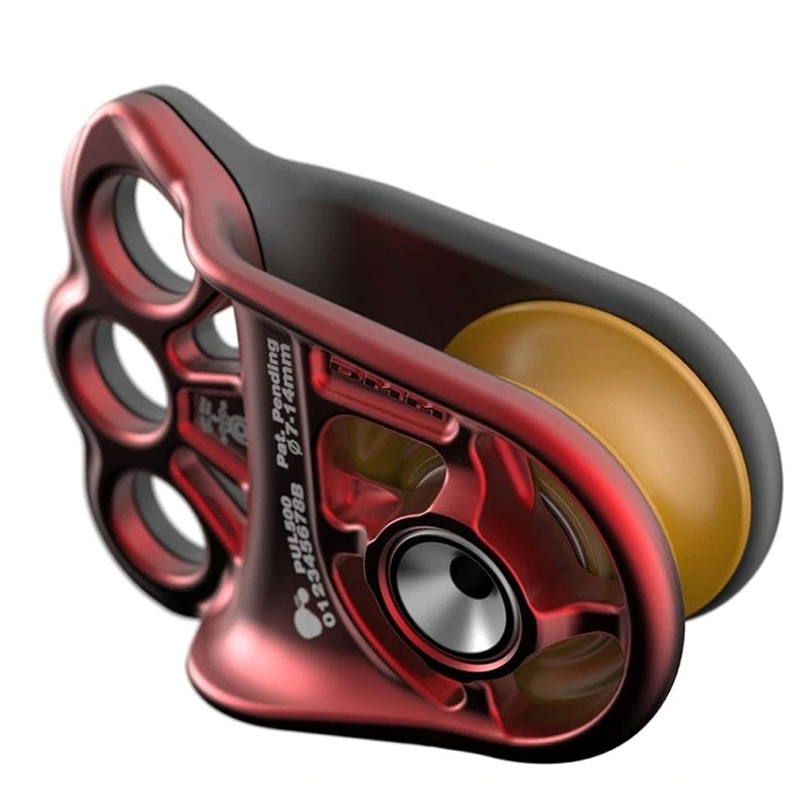

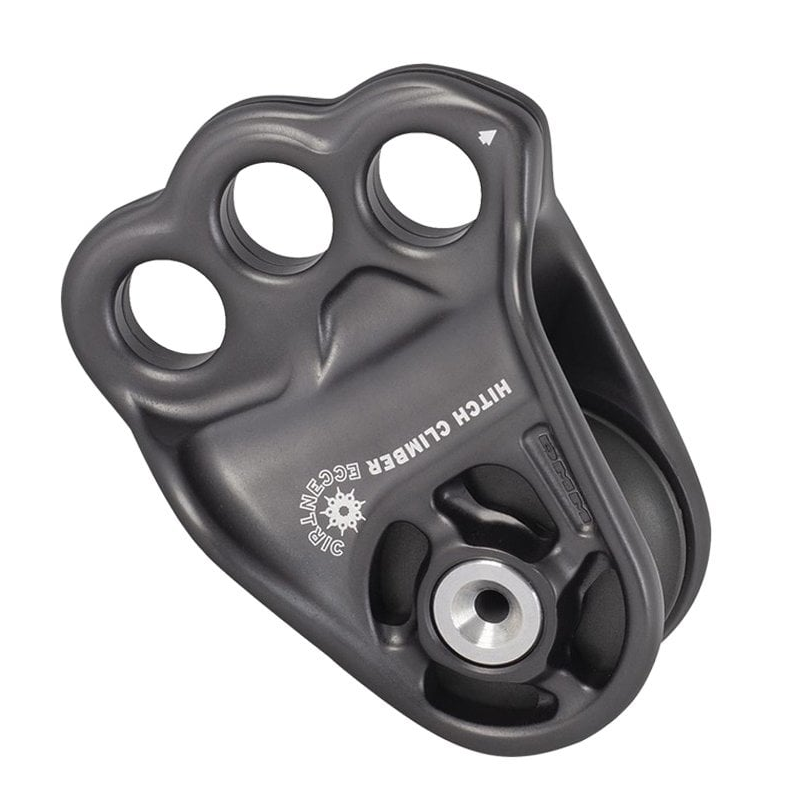

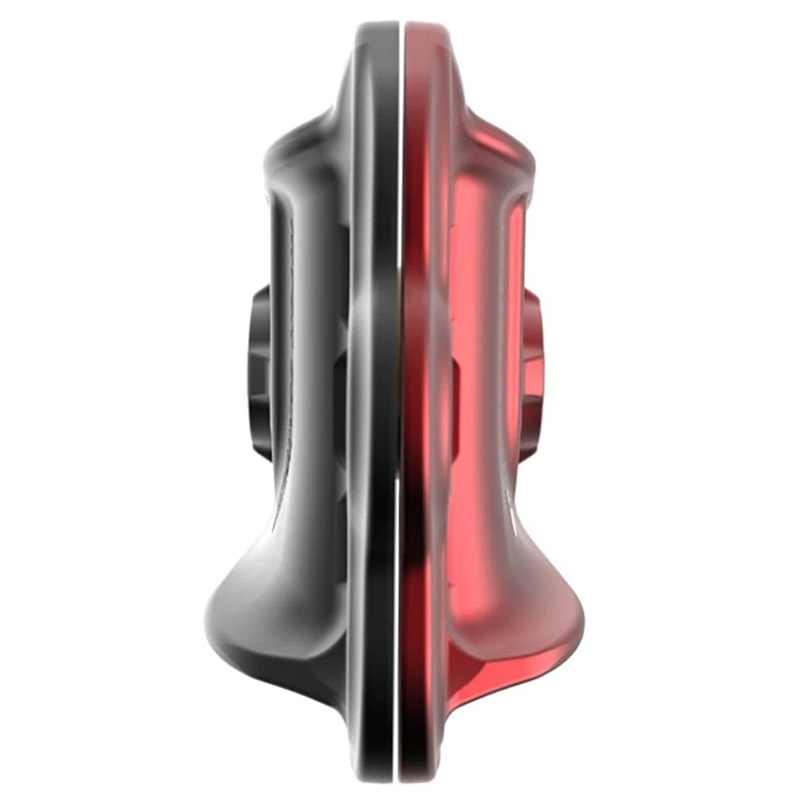

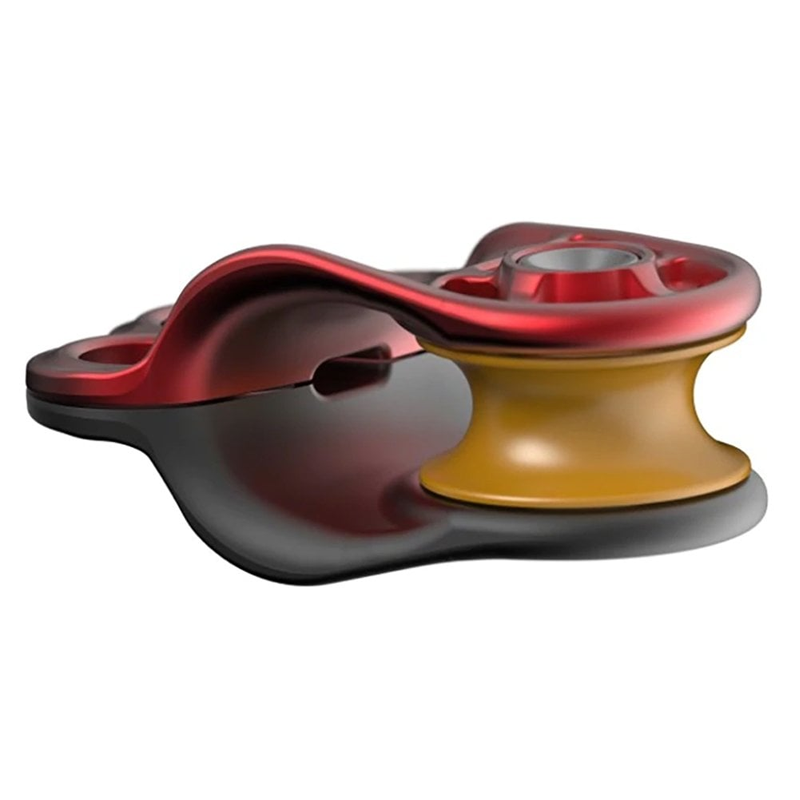

The Hitch Climber Eccentric is an advanced evolution of the classic Hitch Climber, featuring optimised geometry for earlier hitch advancement and improved rope fairleading. Designed for high‑efficiency friction hitch work positioning systems.
Key Features
- New pushing plates advance friction hitches earlier and more efficiently
- Optimised fairlead flares guide rope smoothly to the sheave
- Three‑hole rig plate supports varied positioning systems
- Large sheave with efficient roller bearing
- Hot‑forged, CNC‑machined aluminium side plates with stainless steel axle
Specifications
- Colour: Red/Grey
- MBS: 32kN
- WLL: 6kN
- Dimensions: 66 × 94 × 44mm
- Weight: 184g
- Rope Diameter: 7–14mm
- Sheave Diameter: 42mm
- Certification: EN12278:2007
