Product Description
DMM Bat Plates provide strong, lightweight and versatile rigging hubs for rescue and technical systems. Precision‑machined with textile‑friendly radii, they minimise height loss and centralise connections effectively.
Key Features
- Textile‑friendly surfaces with large radii
- Oversized central hole for stable, centralised attachment
- Can be bolted together for 100% redundancy
- CNC‑machined from high‑strength, heat‑treated aluminium
Specifications
- Sizes: S / M / L
- Colours: Red (S), Blue (M), Gold (L)
- MBS: 60kN
- WLL: 12kN
- Dimensions:

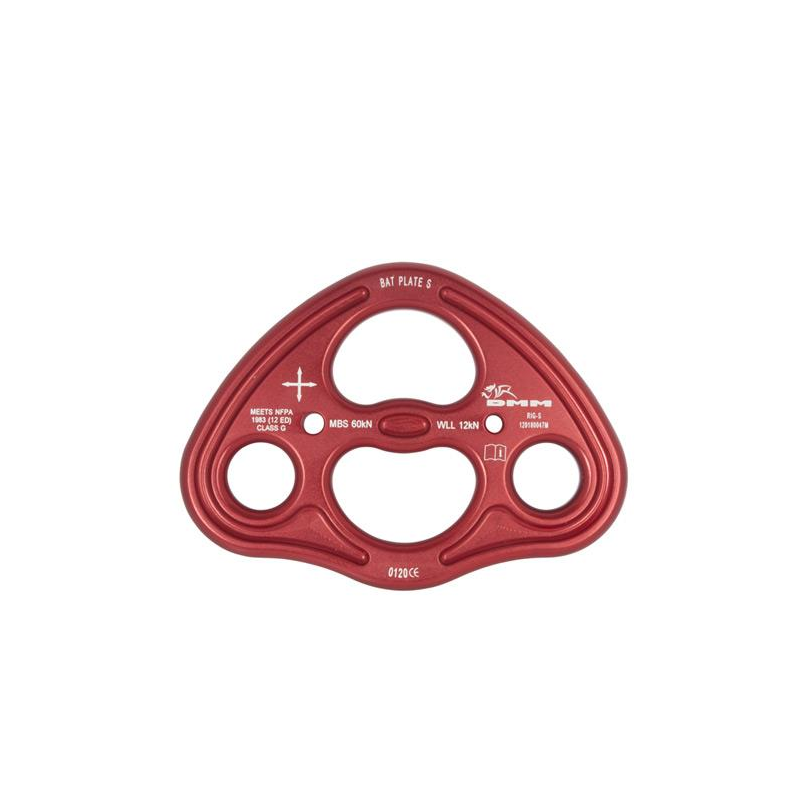

- Small: 129 x 95 x 10mm, 159g

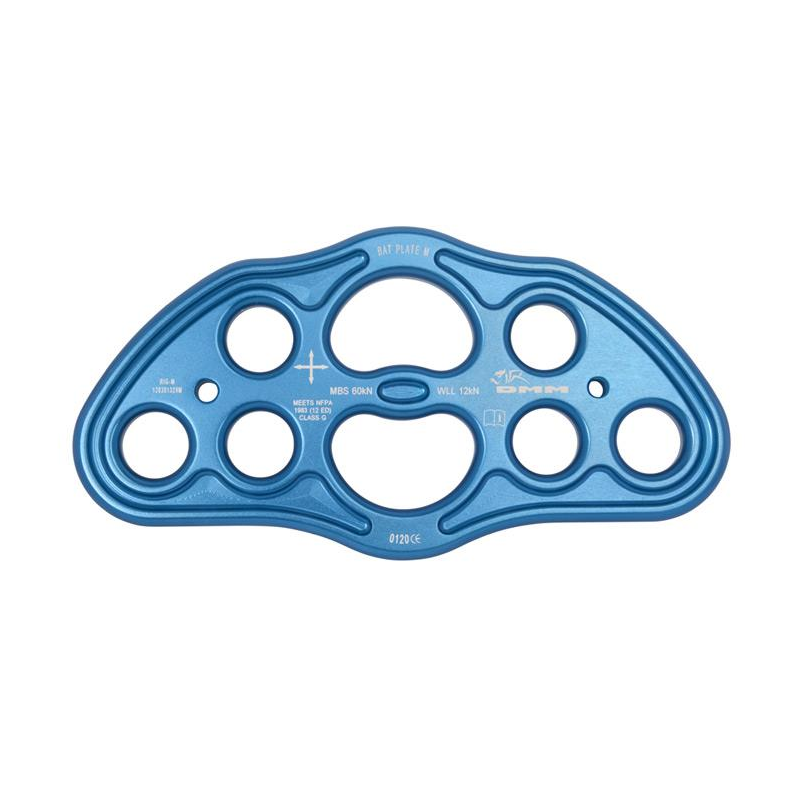

- Medium: 189 x 97 x 10mm, 247g

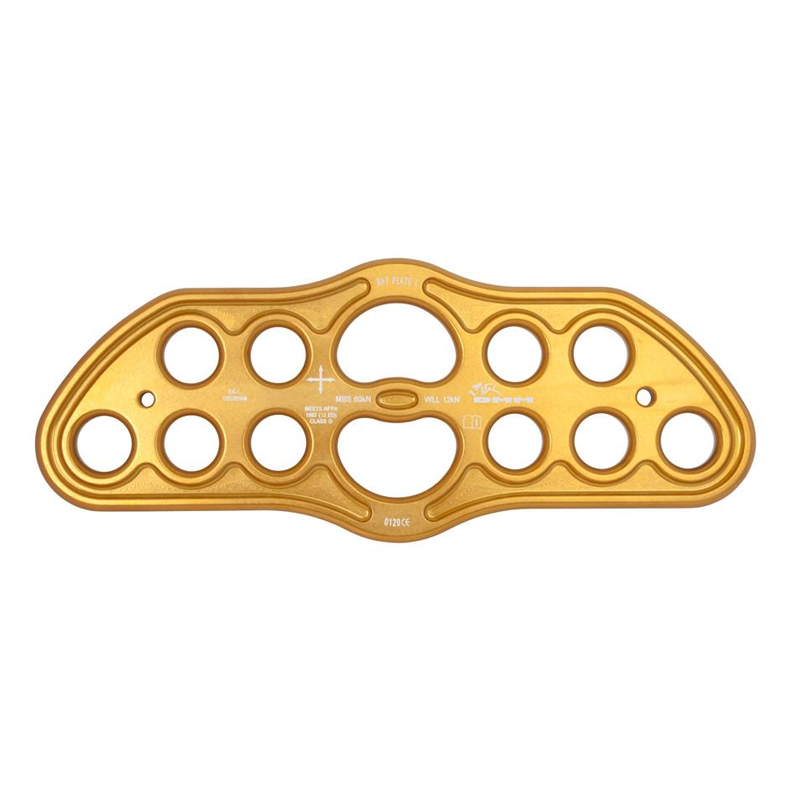

- Large: 249 x 99 x 10mm, 322g - Certification: EN17961:2025
