Product Description

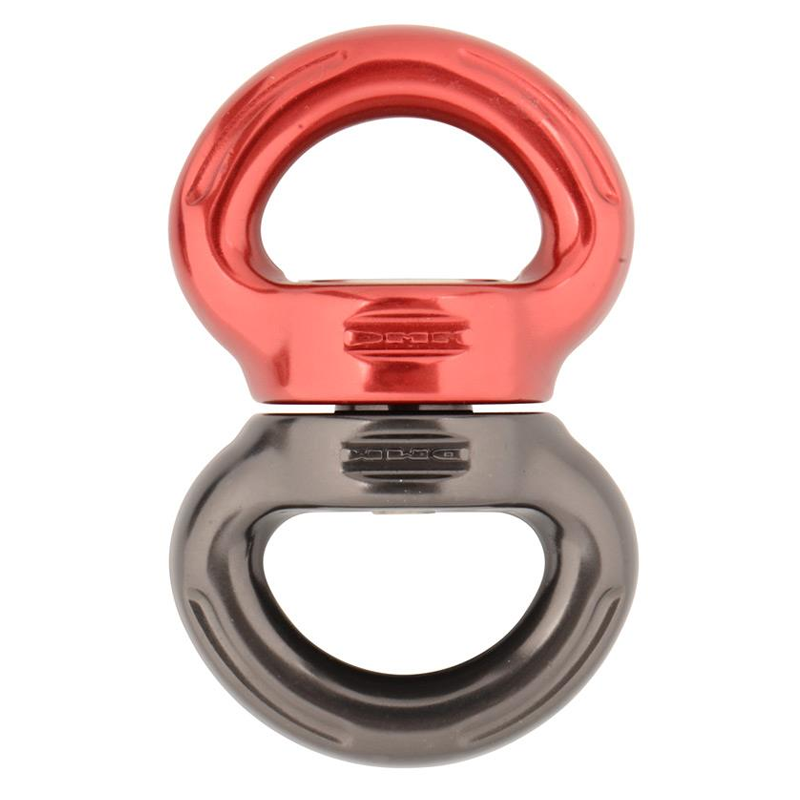

The Axis Swivel Large is a compact, high‑strength swivel designed to reduce torsion in rigging systems. Built from heat‑treated aluminium with stainless steel axles, it offers exceptional durability and compatibility with multiple connection types.
Key Features
- Strong, efficient swivel for managing torsion in rigging systems
- Large eye accommodates up to three connections
- Smooth anodised finish for textile‑friendly use
- Robust construction suitable for tree care, rescue and industrial rigging
Specifications
- Colour: Titanium/Red
- MBS: 50kN
- WLL: 10kN
- Dimensions: 96 × 60 × 39mm
- Weight: 184g
- Certification: Manufacturers Technical Specification QAP100
- Material: Hot forged 7075‑T6 aluminium
- Stainless steel axles
- Large enough for a Locksafe carabiner gate to pass through
|
Product Name |
Product Code |
Colour |
MBS |
WLL |
Dimensions |
Weight |
Conformance |
|
Axis Swivel Large |
SW200 |
Titanium/Red |
50kN |
10kN |
96 x 60 x 39mm |
184g |
NFPA 1983 (2012ED) G |
